Weatherproof Pipe Insulation Jackets For External Industrial Pipework

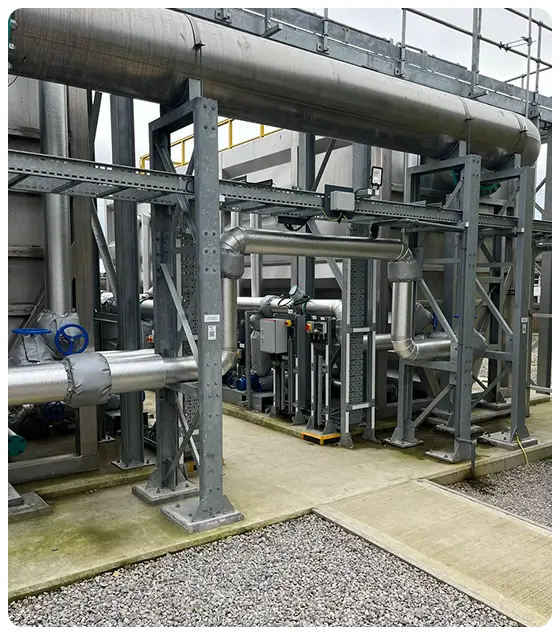

This case study covers a project at a water treatment facility where Lagflex supplied a range of bespoke thermal insulation jackets for newly installed external pipework. The requirement was to protect the system against heat loss, weather exposure and condensation while keeping the pipework accessible for inspection and routine maintenance.

For weatherproof insulation requirements, contact our team with your pipe sizes and site conditions and we will specify the right solution.

The challenge

External pipework installations demand more from insulation than anything inside a building. In this project the main challenges were:

Full outdoor exposure with no shelter from weather or UV radiation

A varied set of pipe sizes and configurations across the installation
Risk of condensation on cold pipe surfaces as well as heat loss from warm sections

The need for insulation that would last in an outdoor environment without constant replacement

Every jacket was made to the specific pipe dimensions on this site. This is not something that can be achieved with standard thermal insulation jackets. Getting the fit right on external pipework is particularly important because any gaps or loose edges become entry points for moisture, which degrades the insulation from the inside and significantly reduces its effective life.

The Lagflex solution

Lagflex manufactured a set of custom-fit removable pipe insulation jackets designed specifically for outdoor use at this site. The specification addressed each of the environmental challenges directly.

Key features of the pipe insulation jackets:

Reduce heat loss at pipe flanges, the most commonly overlooked insulation gap on site

Weather-resistant outer casing with UV and moisture resistance rated for continuous outdoor exposure
High-performance insulation fill to maintain system temperature and prevent condensation
Tailored fit for every pipe diameter and configuration on site, with no gaps or loose sections
Secure fastening throughout to ensure a tight, gap-free fit with no thermal bridging

The multi-section approach was central to the design. Handling a single large cover on an industrial vessel is impractical, and it creates problems when only part of the vessel needs to be accessed. By designing the cover as a series of interlocking sections, each panel could be removed independently, giving the maintenance team targeted access without disturbing the rest of the installation

Specifying insulation for external pipework?

Contact Lagflex with your pipe sizes and layout and we will design a system built for your conditions.

The result

The completed installation delivered everything the client needed from an outdoor pipe insulation system:

Consistent heat loss reduction across all insulated sections of the external pipework

Reliable protection against weather, UV degradation and moisture ingress

Extended service life for the pipework and system components underneath the insulation

Easy access for maintenance teams, with jackets that can be removed and refitted quickly without any damage to the insulation itself

Properly specified external insulation is one of the most cost-effective investments available on a site with significant outdoor pipework. Getting the materials right at the outset avoids the cycle of replacing degraded insulation every few years, which carries both material and labour costs that quickly outpace the original investment.
